One reagent platform, two throughputs — from 120 to 200 tests per hour — and 248 assays. Fully automated chemiluminescence, engineered and manufactured by SHD.
We provide our customers with the latest technology, the most suitable and the highest quality systems to add value in diagnostic processes
We strive to provide high quality diagnostic products and solutions that will assist to detect and treat health problems.
Through our knowledge, experience, and value creating strategies we strive to readily make available cost effective innovative diagnostic products and solutions.
Clarity, trust, loyalty, pride and respect - these are our values.

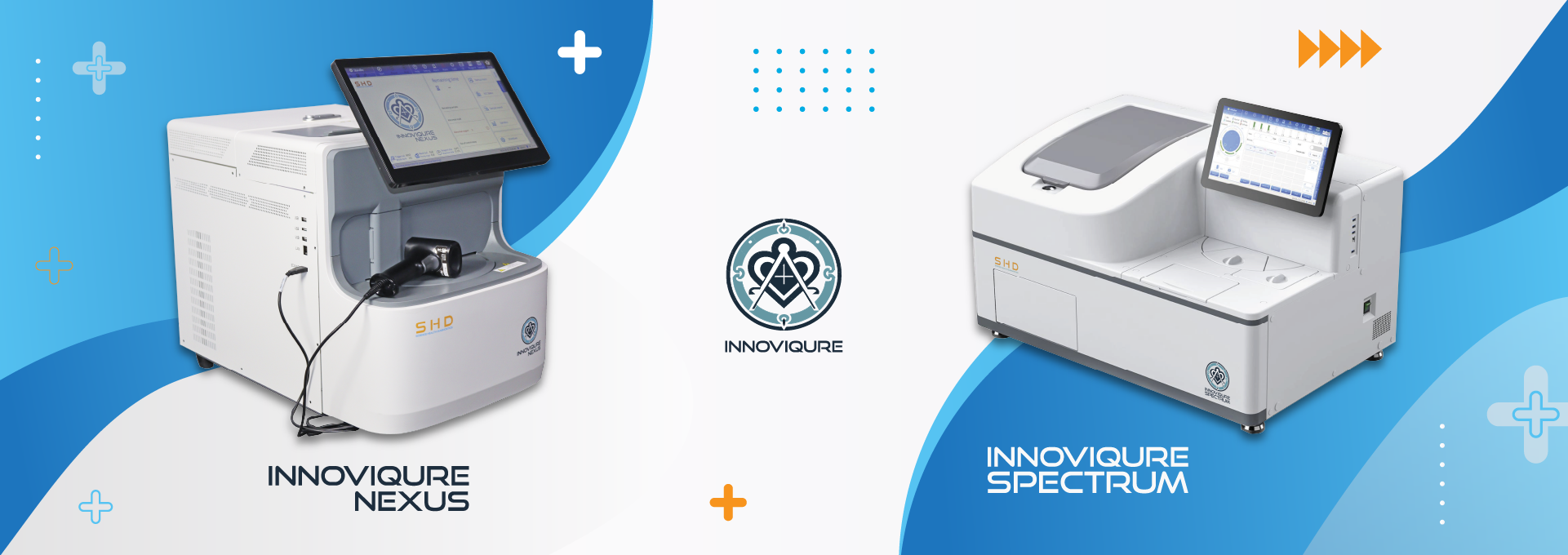

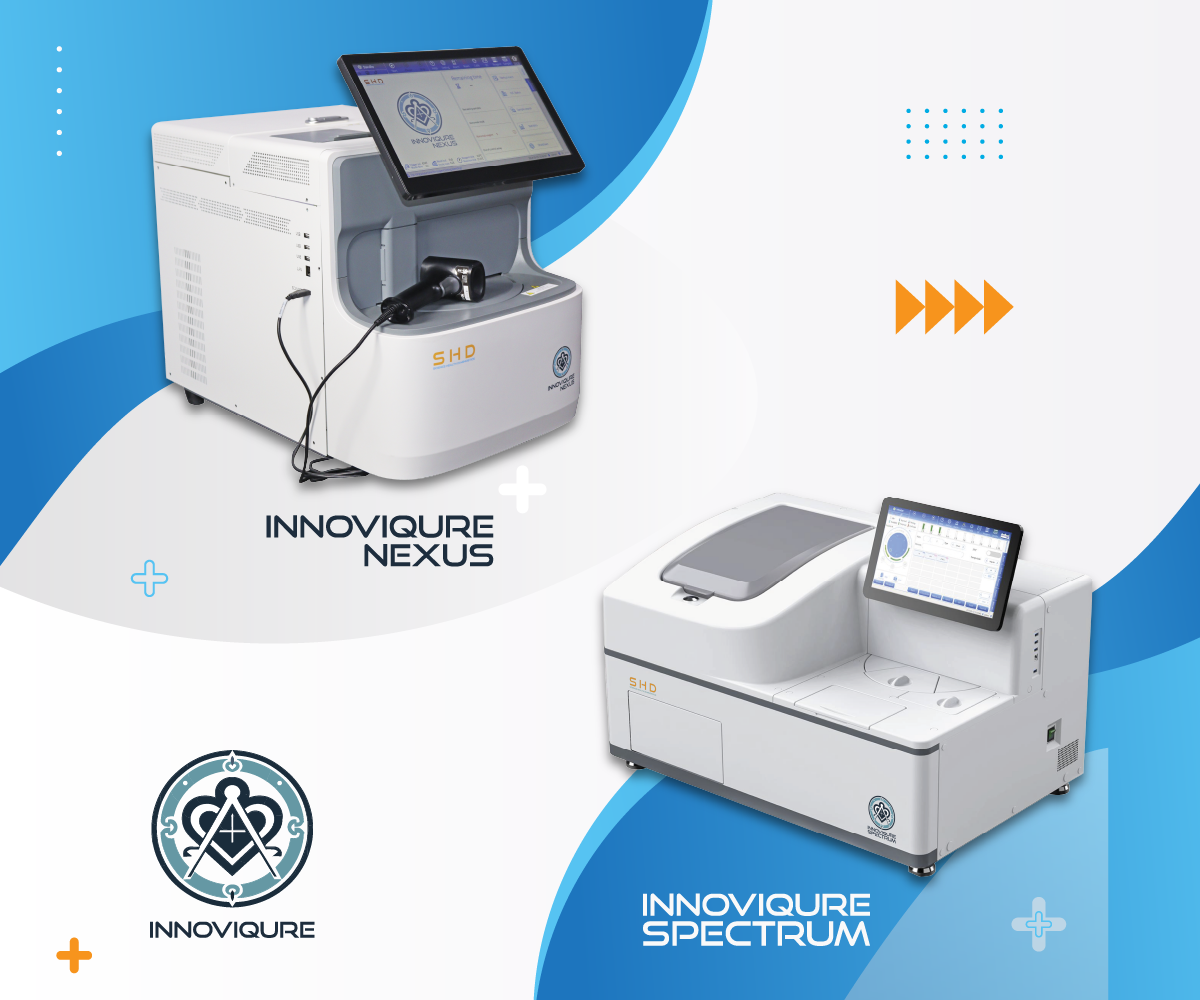

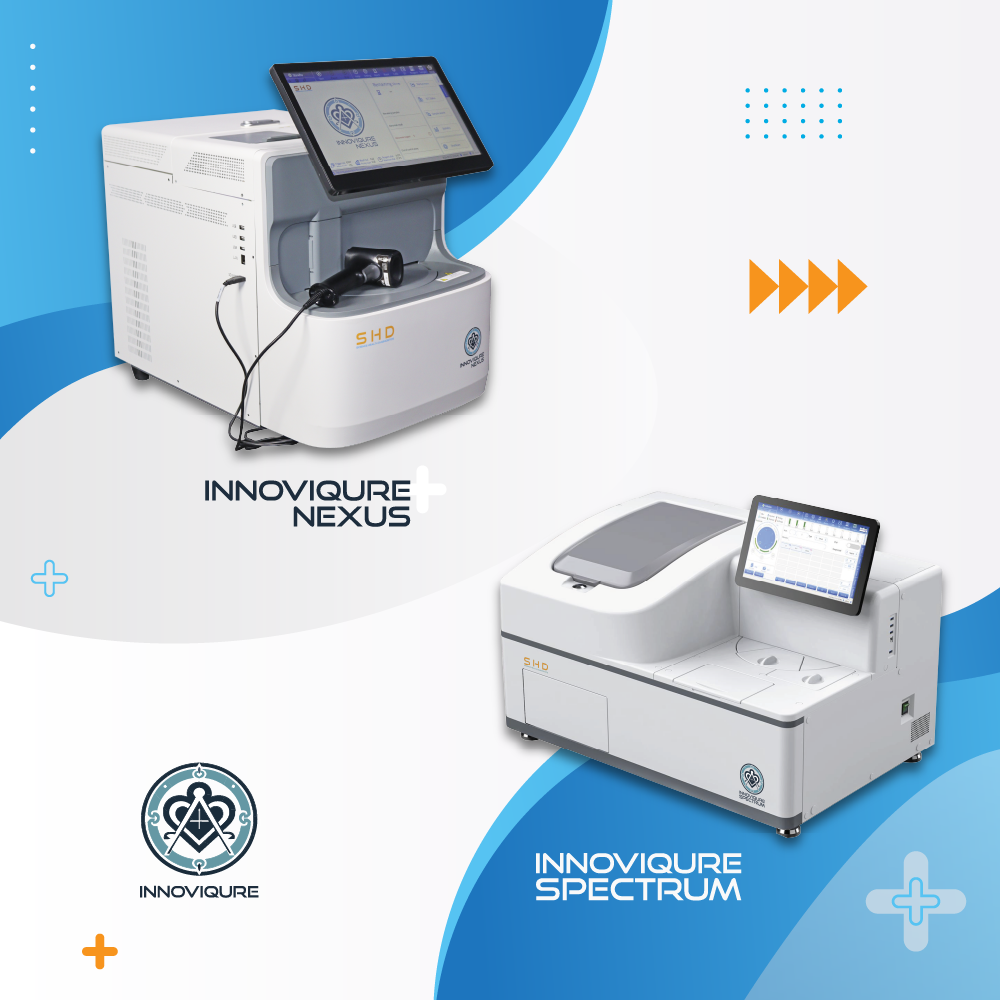

Two analyzers, one reagent menu — the NEXUS and SPECTRUM run the same 248 assays, so you can match throughput to your laboratory without changing your tests.

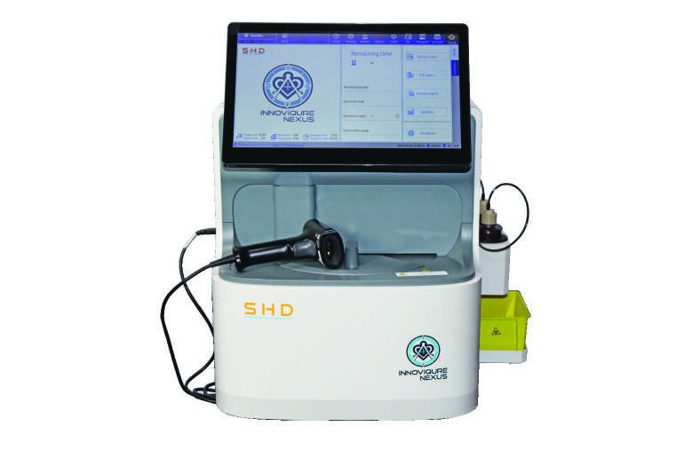

Innoviqure Nexus
Functions
• Fully automated chemiluminescent immunoassay (CLIA) analyzer
• Integrated color touchscreen with on-board barcode scanner
• Automated incubation, washing and detection
• Power-on self-test, calibration and QC management
Highlights
• Compact benchtop footprint for small to mid-volume laboratories
• Broad menu: tumor markers, thyroid, fertility, cardiac & infectious

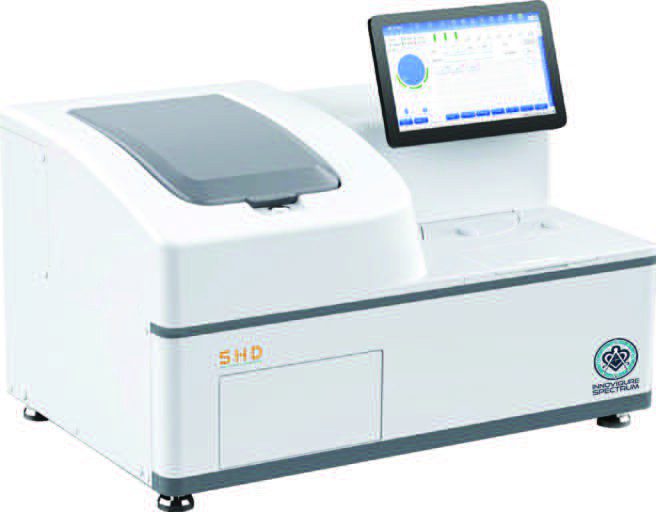

Innoviqure Spectrum
Functions
• All-in-one incubation, washing and detection

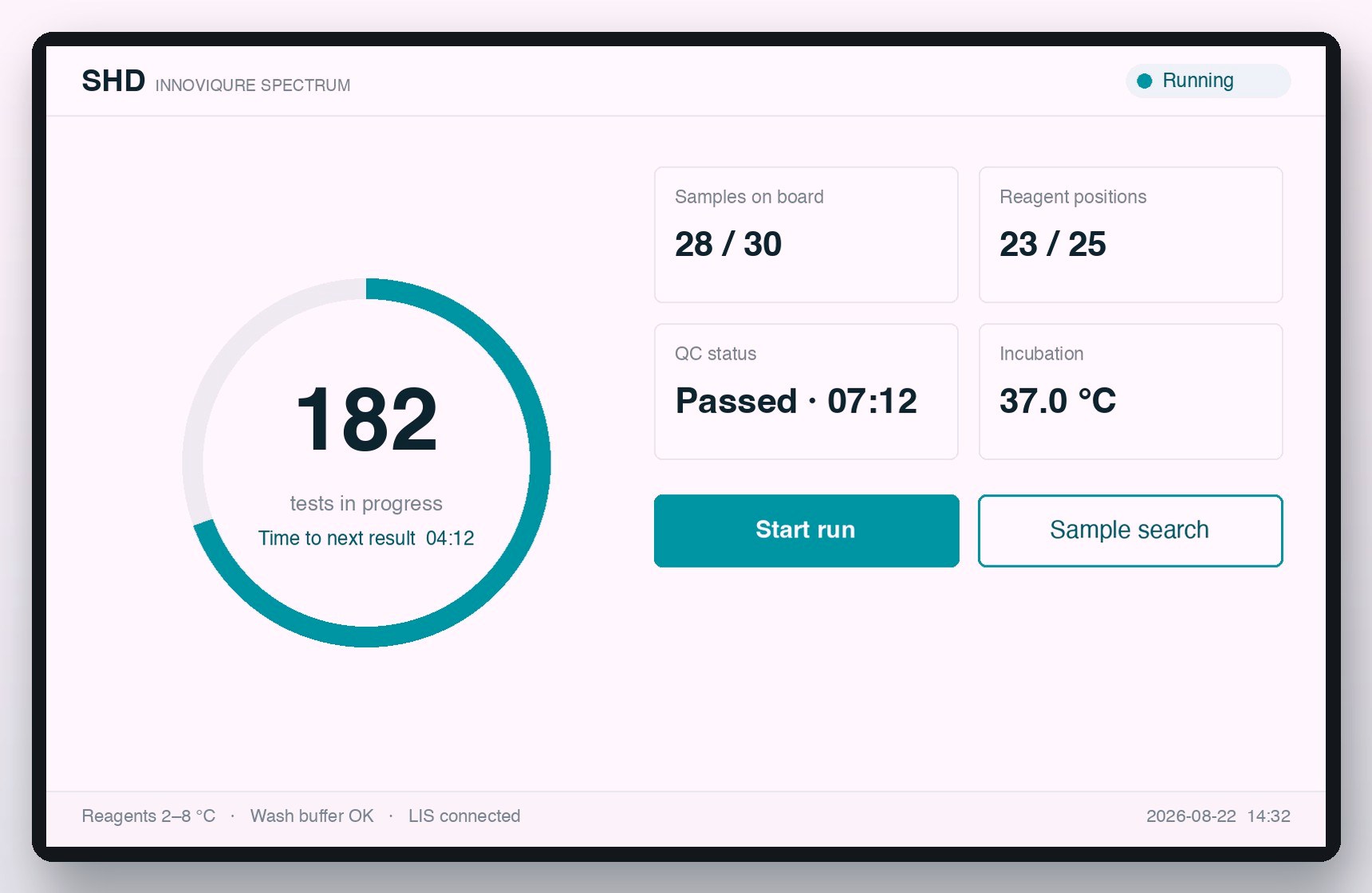

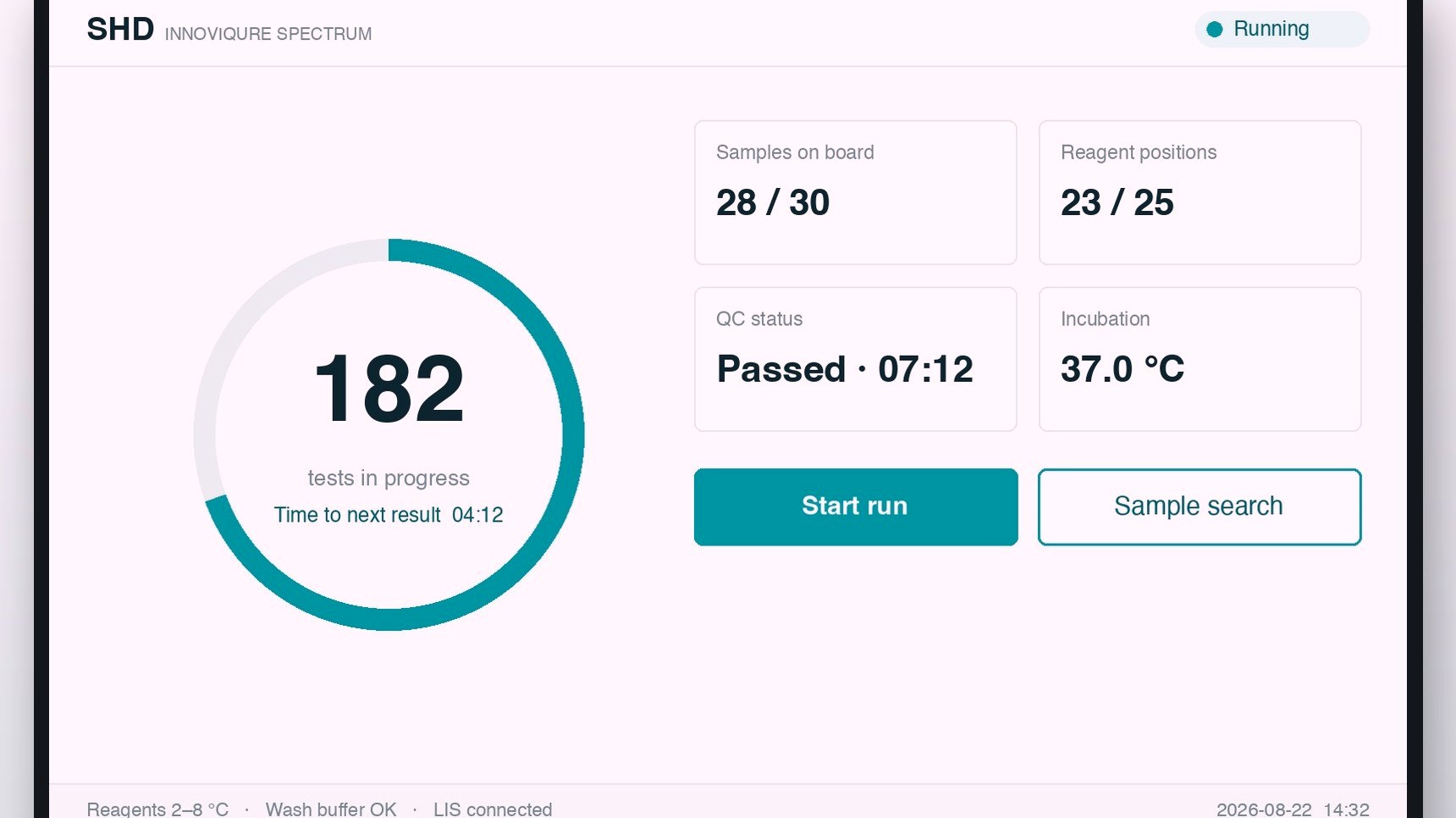

• Color touchscreen with simple, guided operation
• Batch / random / STAT working modes
Highlights
• Compact footprint (≤ 129 kg) suitable for any setting
• 50+ patented, 100% self-developed technologies
• SHD (Innoviqure) reagents and consumables
How INNOVIQURE Works
INNOVIQURE analyzers use direct chemiluminescence on paramagnetic microparticles — the reference immunoassay chemistry — engineered by SHD for speed, sensitivity and reproducibility.
Analyzer Specifications
| Specification | INNOVIQURE NEXUS | INNOVIQURE SPECTRUM |
|---|---|---|
| Technology | Direct chemiluminescence (acridinium ester, paramagnetic particles) | Direct chemiluminescence (acridinium ester, paramagnetic particles) |
| Throughput | 120 tests / hour | 200 tests / hour |
| Time to first result | ≤ 10 minutes | ≤ 10 minutes |
| Sample positions | 30 | 60 |
| Reagent positions | 10 | 25 |
| Reagent refrigeration | 2–8 °C, 24 h continuous | 2–8 °C, 24 h continuous |
| Working modes | Batch / Random / STAT | Batch / Random / STAT |
| Sample types | Serum, plasma, whole blood, urine | Serum, plasma, whole blood, urine |
| Dimensions (W×D×H) | 430 × 680 × 620 mm | 1000 × 670 × 640 mm |
| Net weight | 62 kg | 129 kg |
| Power | 850 VA | 1000 VA |
| Assay menu | 248 assays | 248 assays |
Comprehensive CLIA Test Menu
A total of 248 assays across 19 clinical panels — one shared reagent platform for both the INNOVIQURE NEXUS and SPECTRUM analyzers.

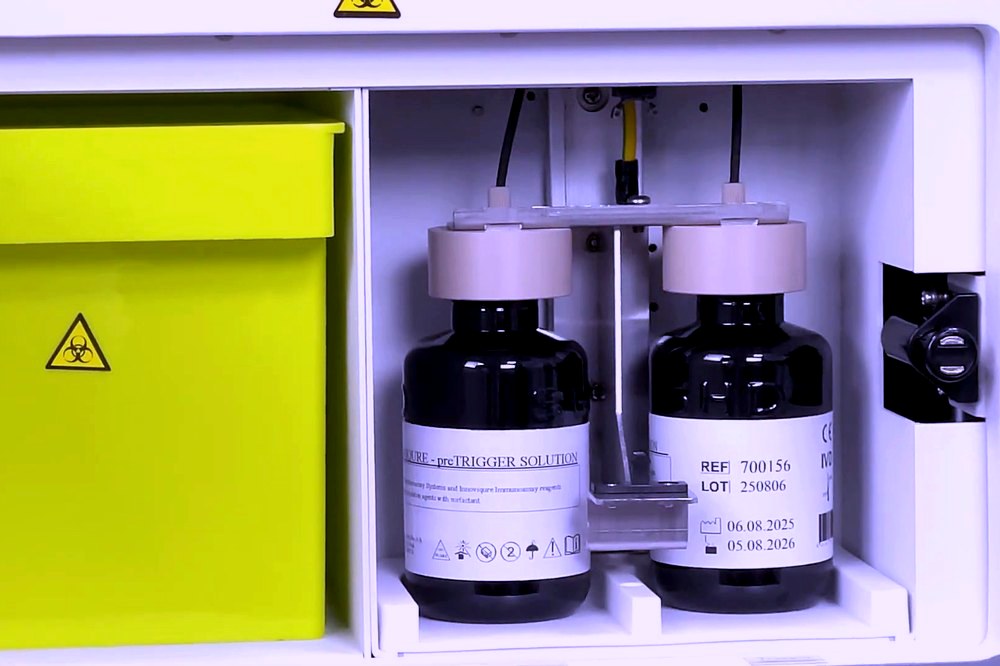

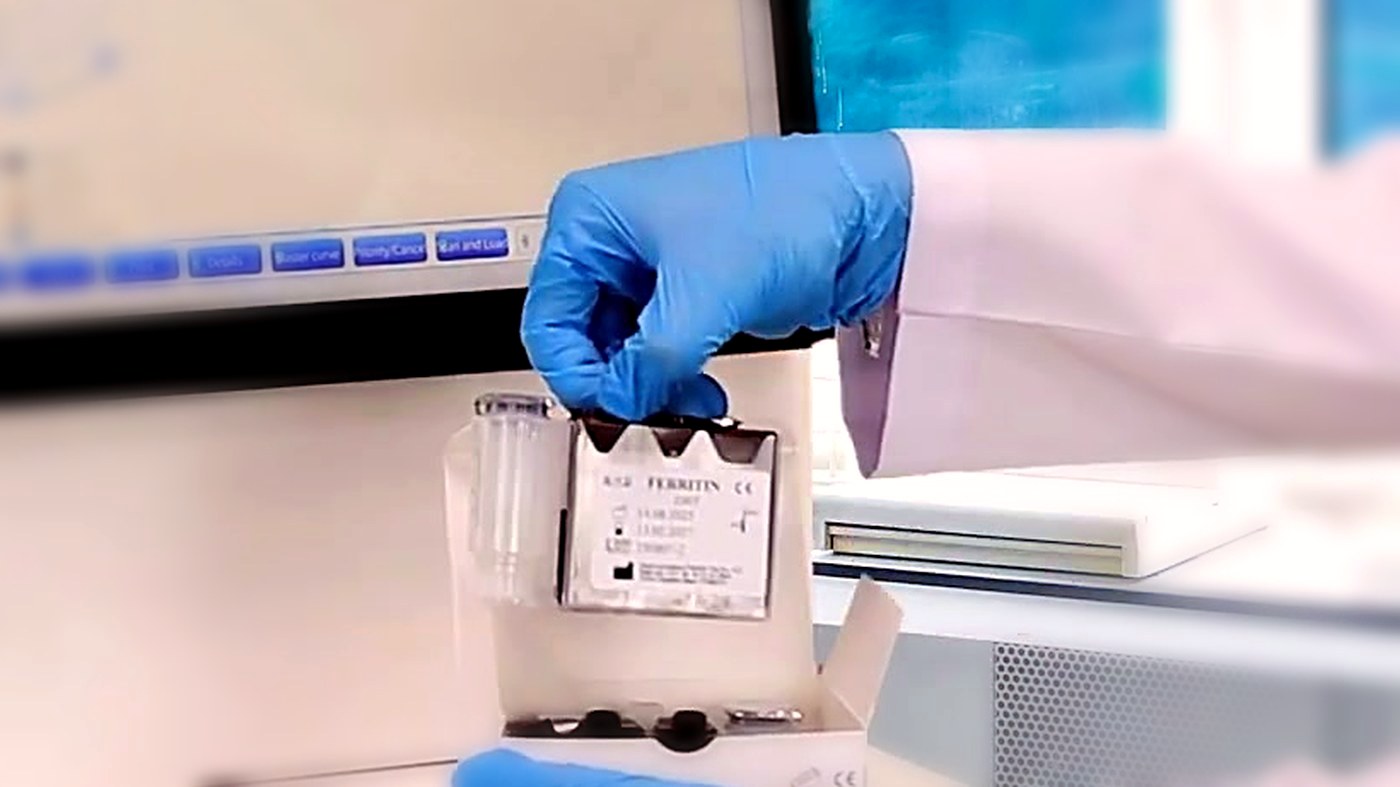

Reagents & Stability
Reagent performance is where INNOVIQURE stands out — long shelf life, on-board cooling and a single reagent platform shared by both analyzers.

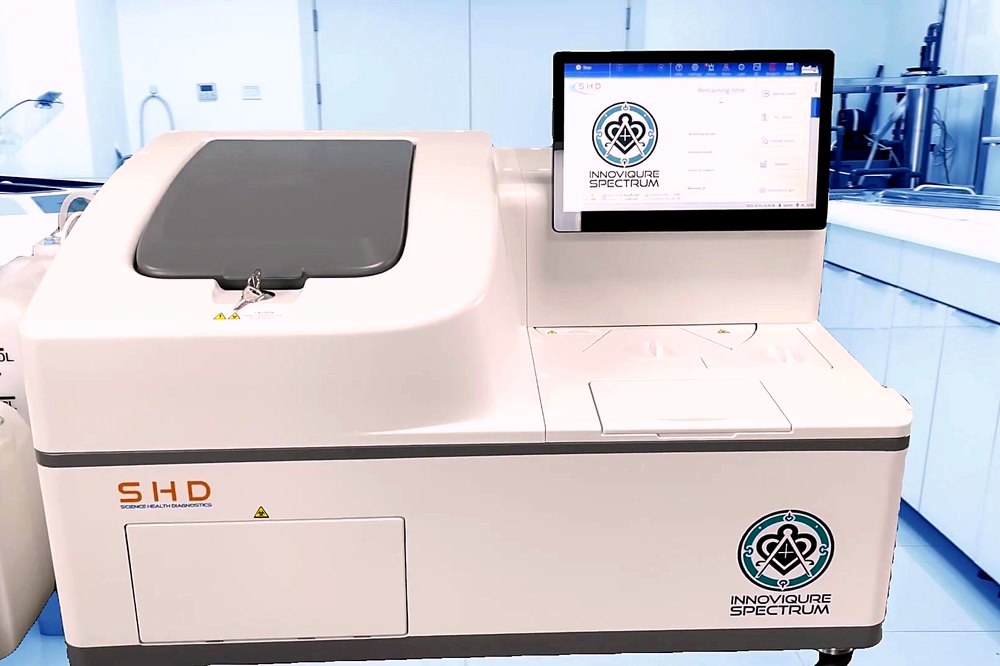

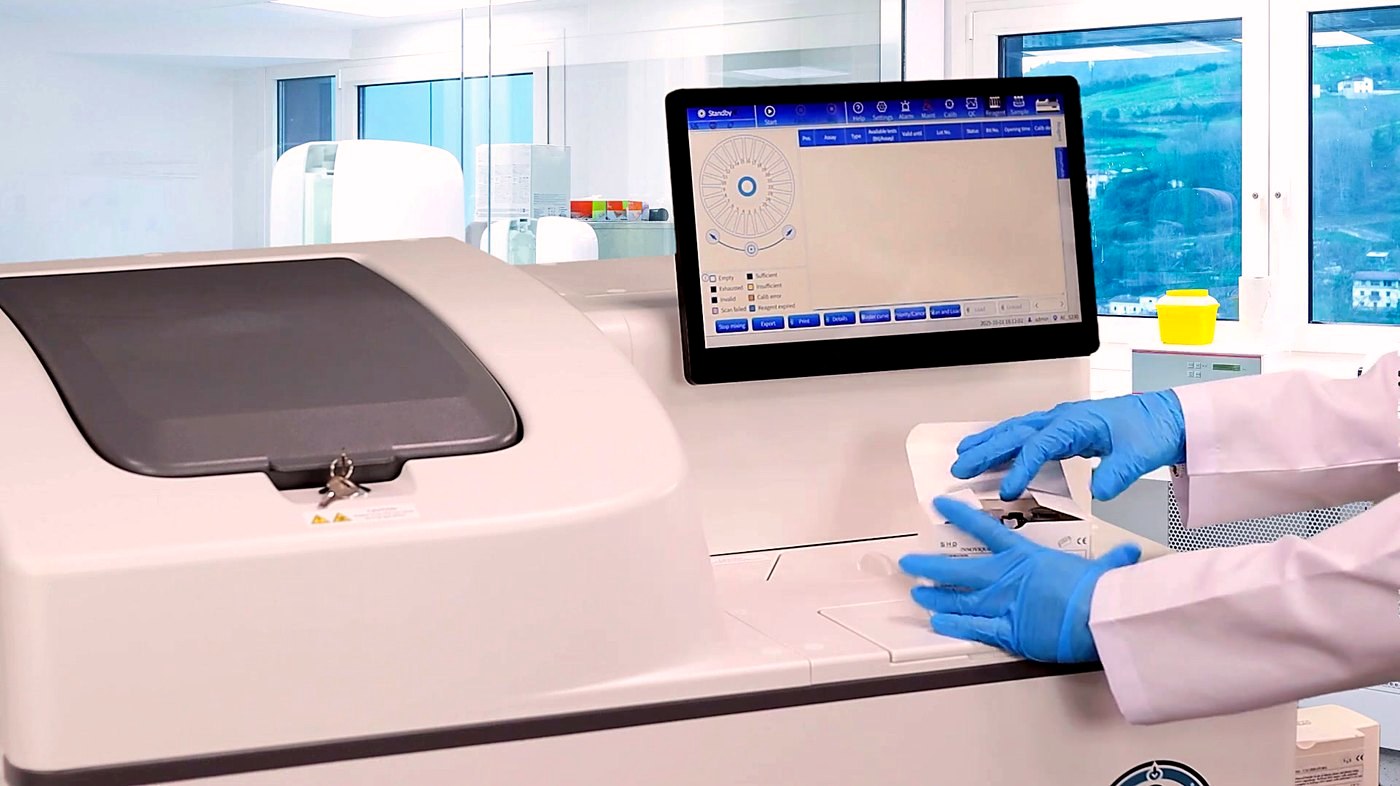

See the Innoviqure Spectrum in action

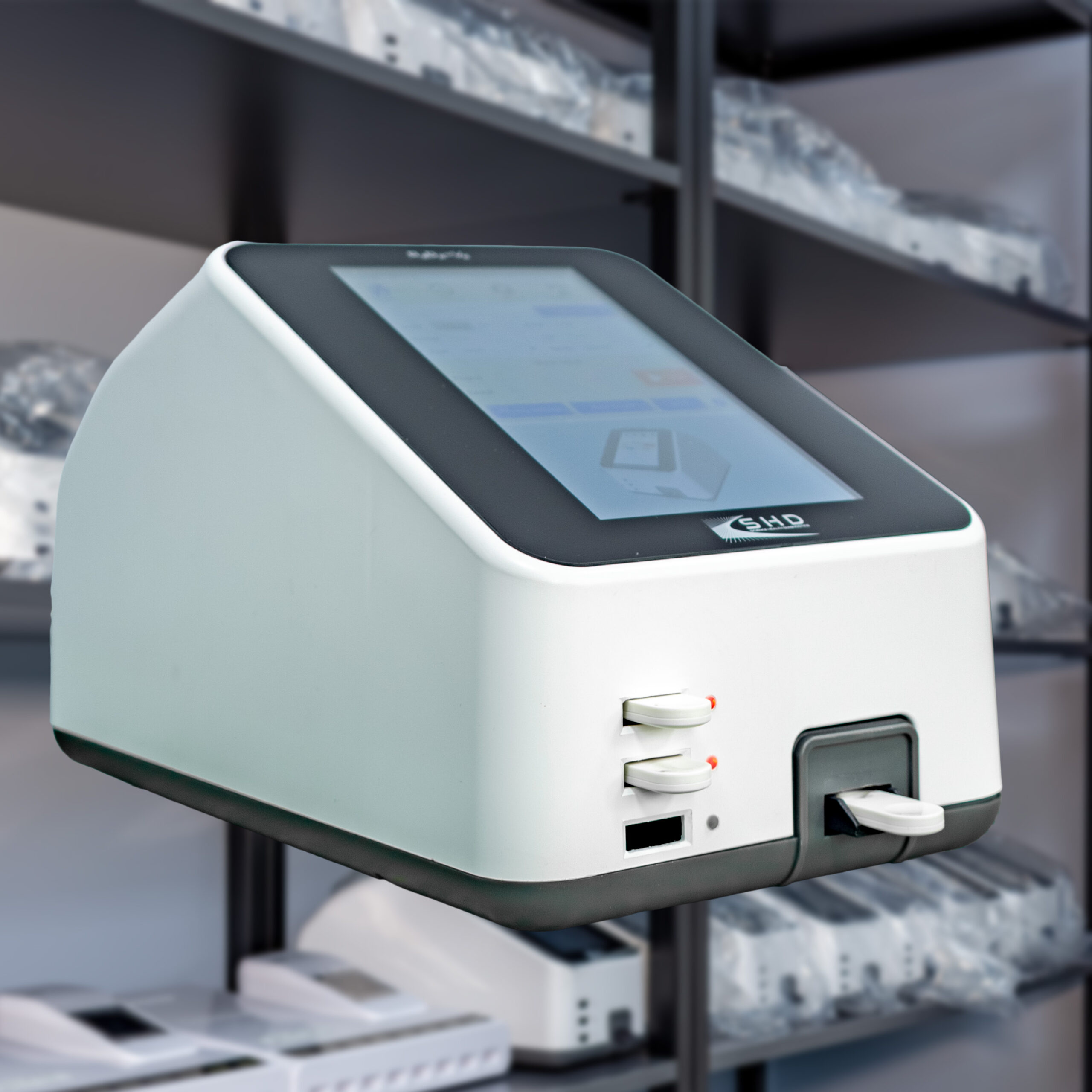

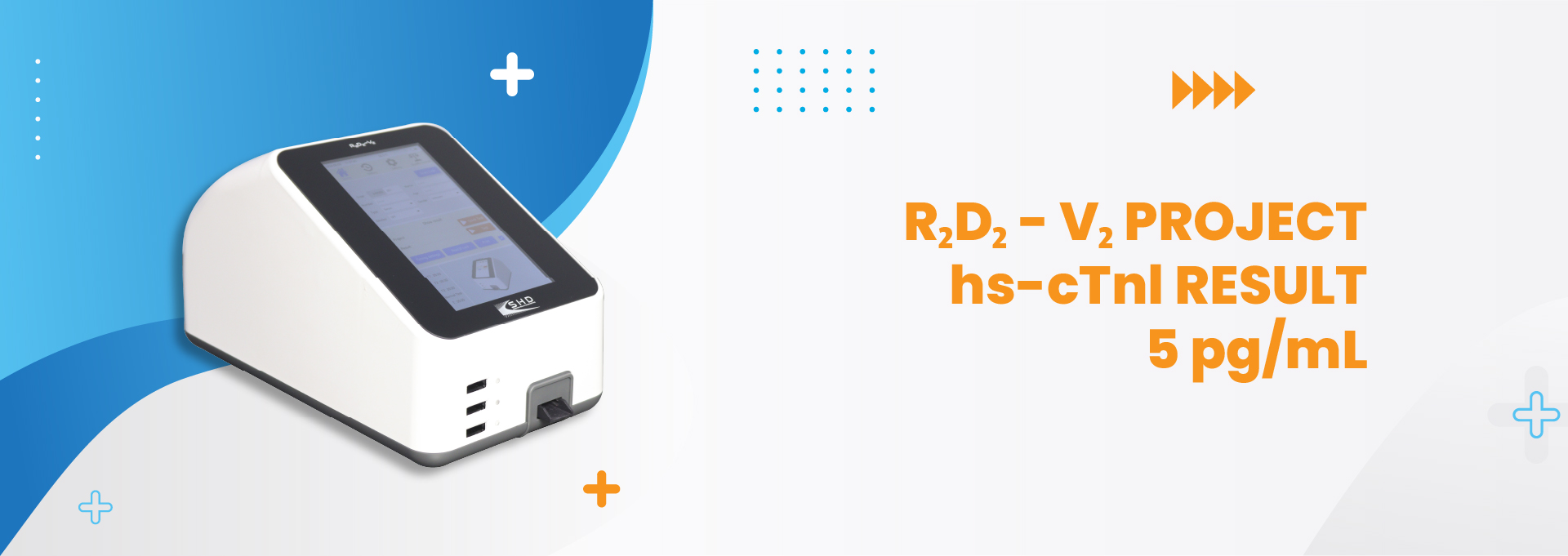

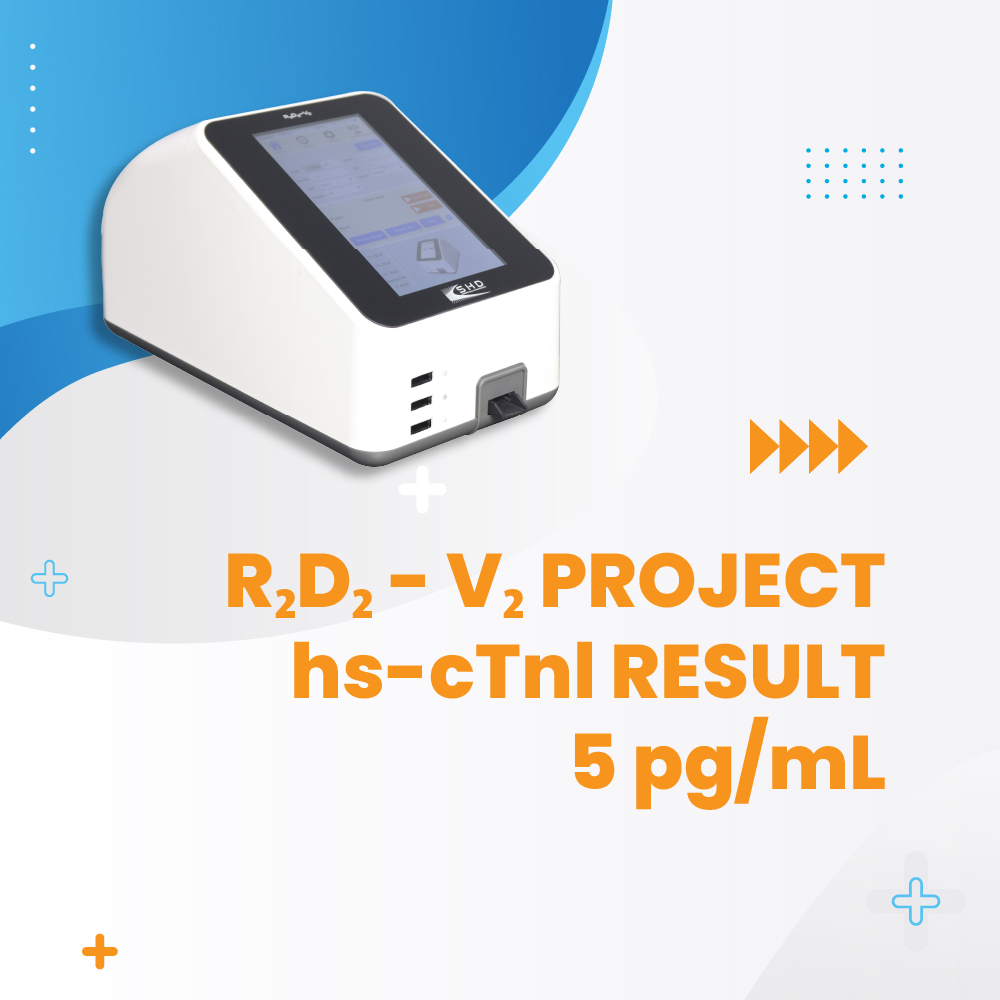

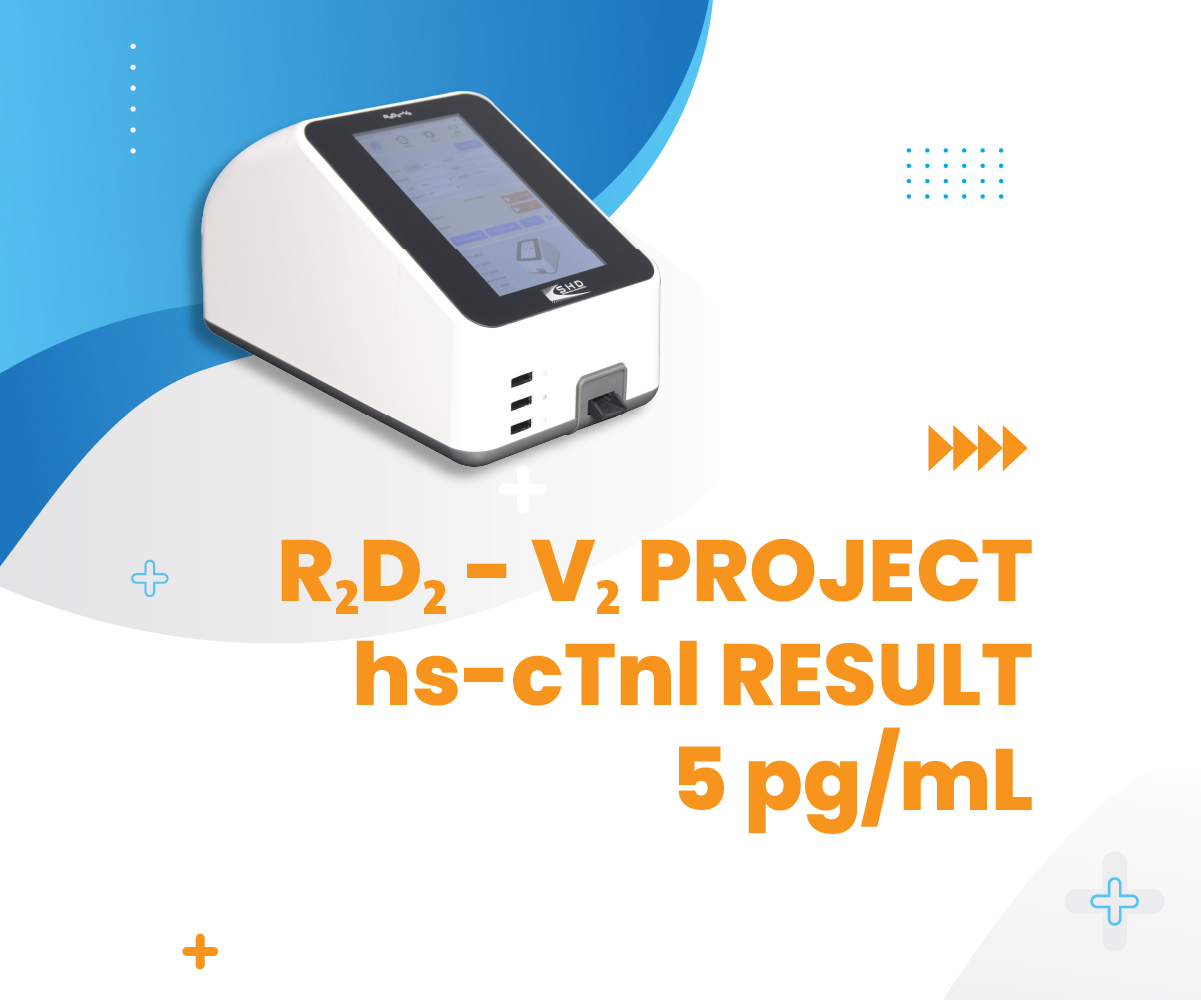

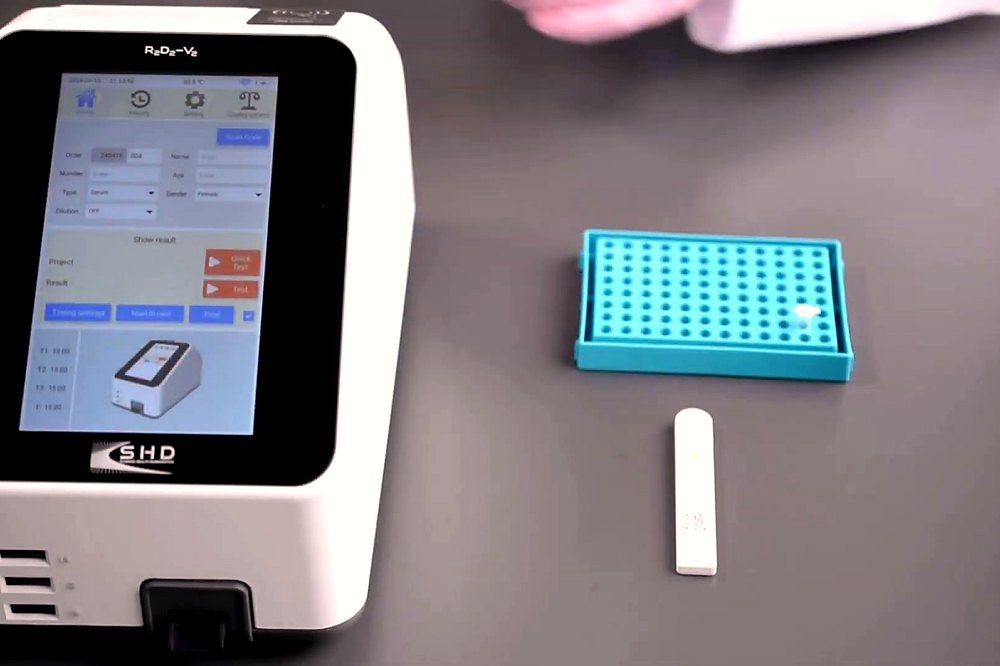

SHD R2D2-V2
Functions
• It has the function of power-on self-test;
• It has the function of storing and querying the results,
and can support a variety of query methods;
• It has the function of entering calibration information,
and can carry out calibration and calibration;
• It has the function of fault indication.
• With built-in incubator, accurate timing and
• temperature control
Equipment Parameters
• Analyzer size: L×W×H: 304mm×180mm×172mm
• Analyzer weight: 2.2kg
• Adapter input: 100V-240V ~, 50Hz/60Hz,
• output: 12V 4.5A
• Input power: 70VA
• Built-in battery: capacity 5200mah, battery nominal
voltage 11.1V

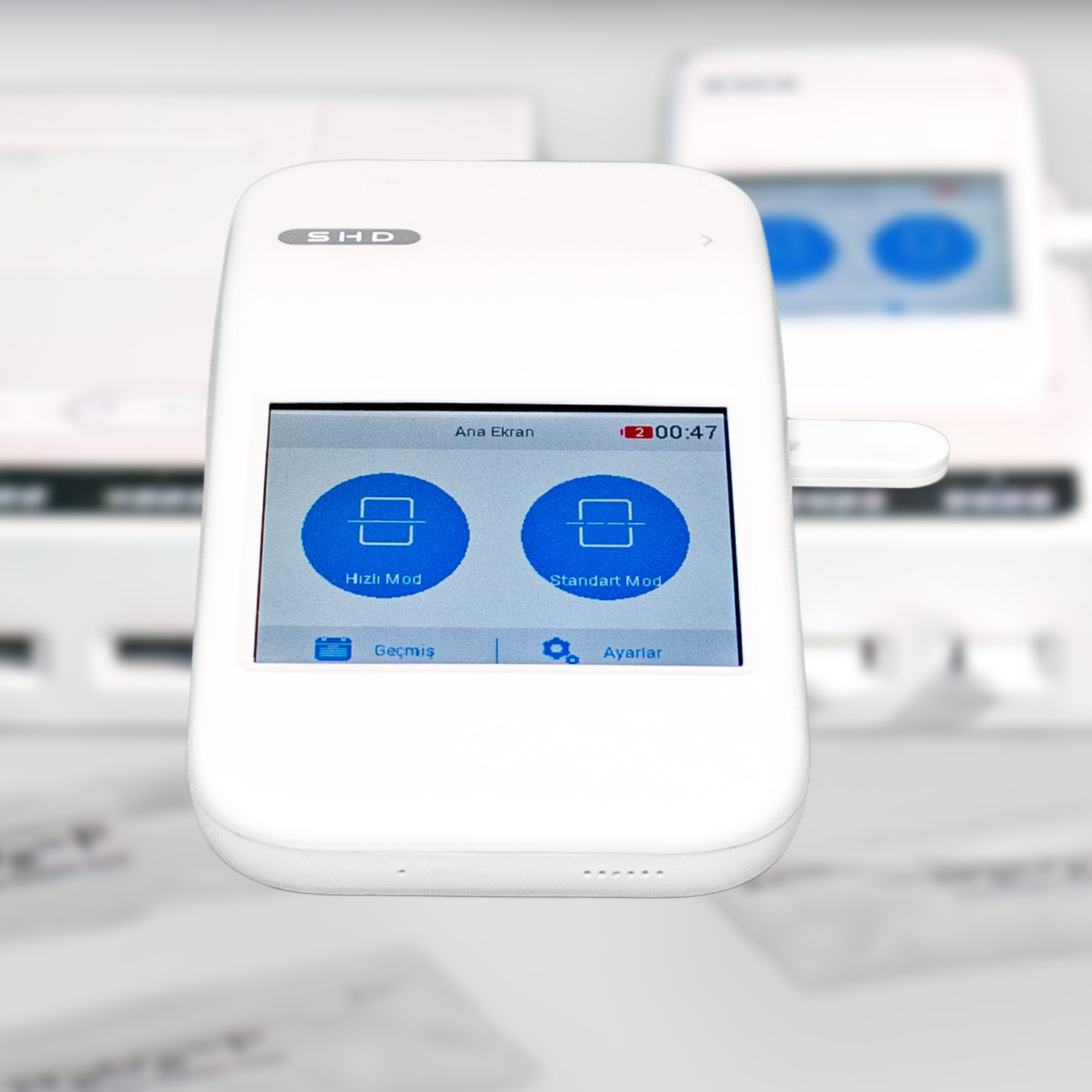

SHD R2D2-F
One of the Smallest FIA analyzer
• High performance based on Quantum Dot Fluorescence
• Immunoassay Technology
• Instant results, up to 10 minutes
• Smaller sample size, as small as 5-20 uL
• User-friendly, room temperature storage test reagents
PORTABLE
One of the smallest Immunofluorescence analyzer
High performance based on
Quantum Dot Fluorescence
Immunuassay
• Good correlation with Top brands
• Wider measuring range
• Higher sensitivity and stability
News & Events

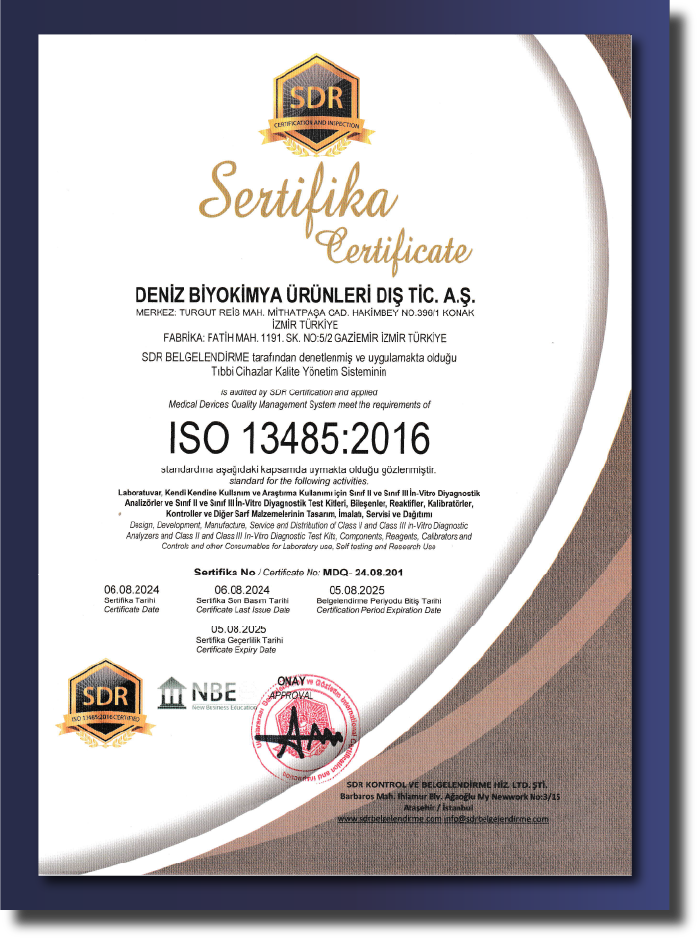

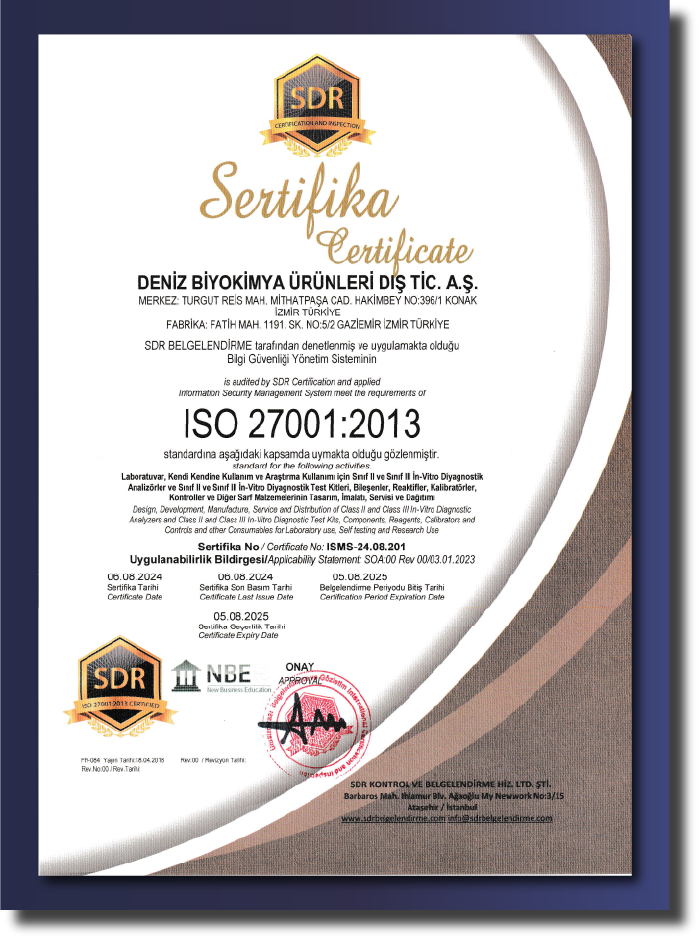

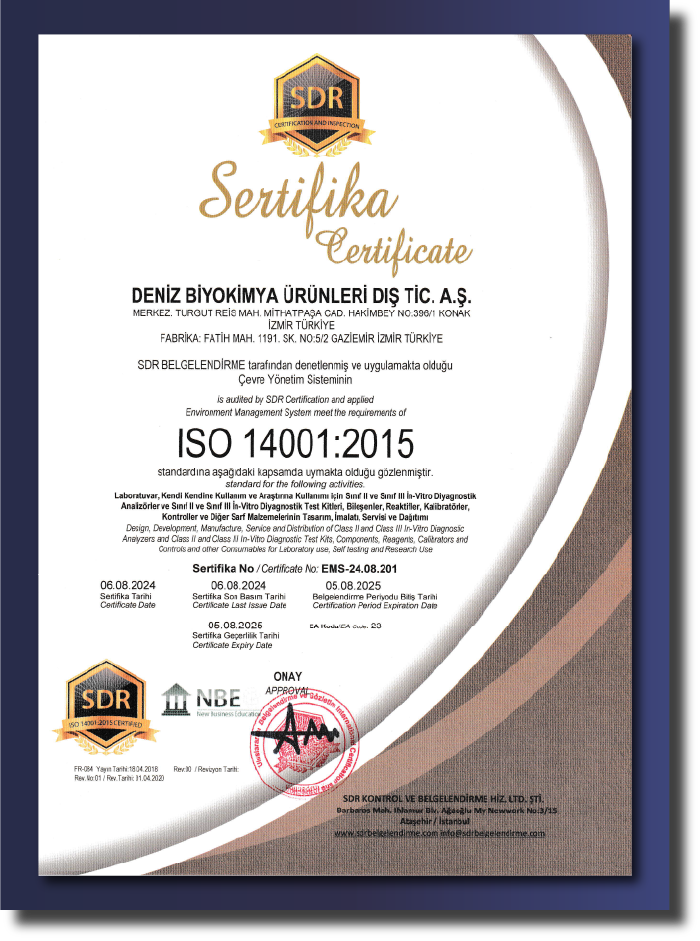

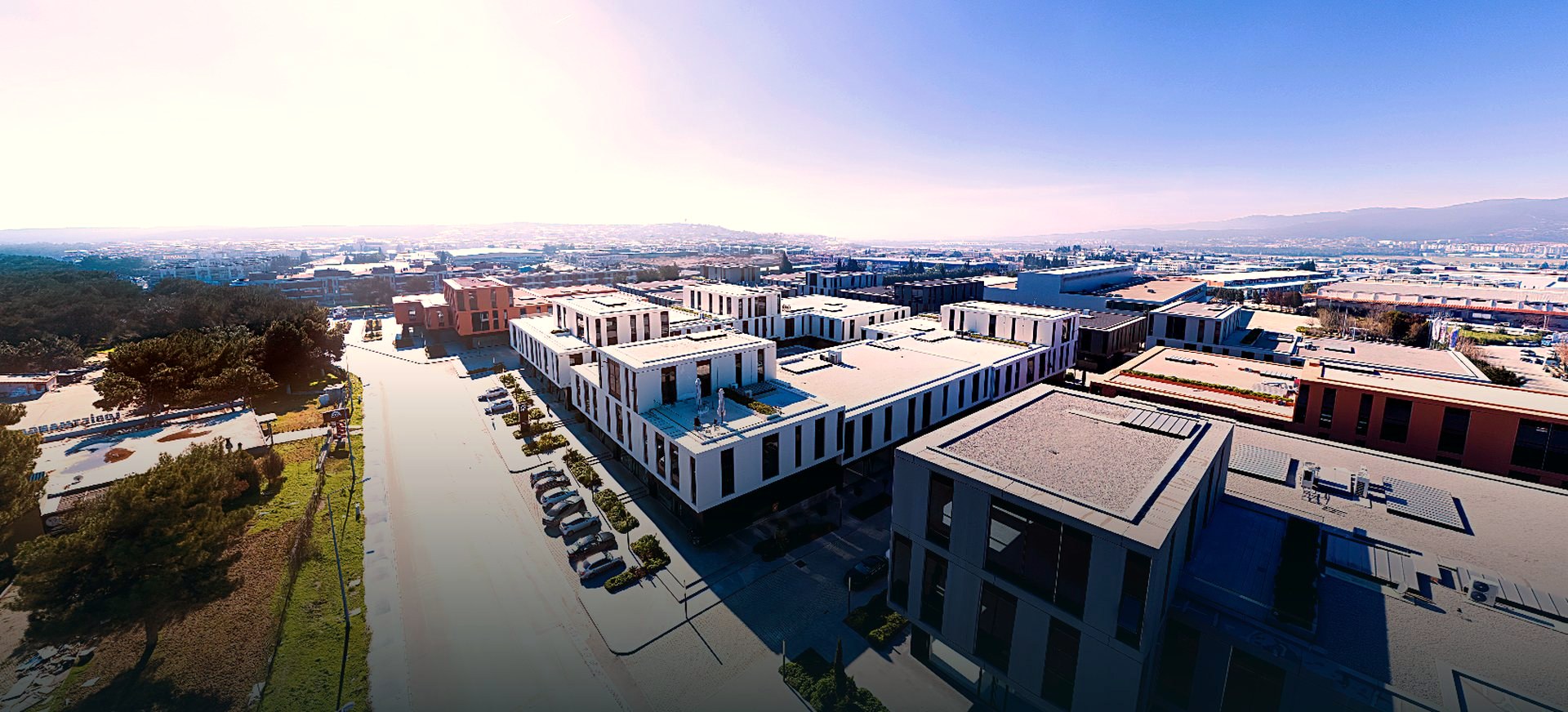

Quality & Regulatory
SHD (Science Health Diagnostics) manufactures under a fully certified quality management system, with regulatory conformity for international markets.
